Clean World Technology Corp. USA
Bringing Together the Global Forces of Environmental Protection Technology
About Clean World
Clean World Technology Corp. USA leverages deep expertise from top Chinese Academy of Sciences institutes: IPE, IAC, and IAGM. We build on years of R&D in energy and environmental technology. Our goal is to meet strict national standards for air protection and solid waste treatment.
Market demand drives our factory to commercialize technology rapidly. We deliver high-efficiency catalytic adsorption products to environmental engineering firms, backed by full technical support.
Core Products:
- High-performance catalysts: Honeycomb denitration and VOCs catalysts.
- Integrated filter tubes & bags: Embedded with nano-catalysts for multi-pollutant flue gas removal.
- Active calcium hydroxide: Engineered with a high specific surface area.
- Ultra-low-temperature catalysts: Designed for hydrogen elimination and CO oxidation.
Applications & Capacity: Our catalytic filter tubes and bags operate in over 60 facilities. Key sectors include glass manufacturing, biomass power, waste-to-energy, coking, and steel production.

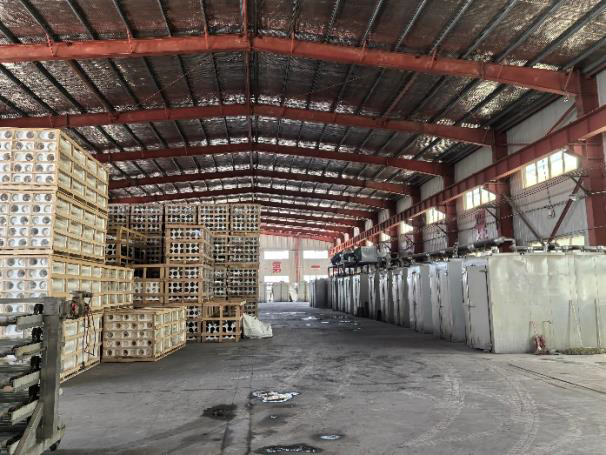

Our plant features 3 dedicated filter tube production lines. We manufacture custom ceramic fiber filter tubes, producing over 100,000 units annually. We handle every step in-house, from tube molding and catalyst formulation to custom coating equipment and processing.

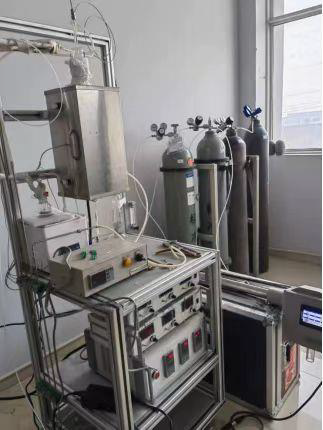

Concurrently, the factory has self-built and procured specialized testing equipment including:
- Catalytic activity test devices for filter tubes
- Pressure drop test devices
- Specific surface area analyzers
- Physical/Chemical adsorption analyzers
- Laser particle size analyzers
- Multiple flue gas analyzers
Clean World Technology Corp. USA developed advanced forming technology using external mold vacuuming and rotating core feeding. We also screened catalyst-compatible materials to lower manufacturing costs significantly.
Today, Clean World achieves full self-sufficiency in ceramic fiber filter tubes and catalyst production. Our facility produces over 100,000 catalytic ceramic fiber filter tubes annually. These products surpass imported alternatives in flexural strength and catalytic performance.
Typical Specifications
Item
Specification Dimensions
Material Composition
Filtration Area
Porosity
Weight
Pressure Drop (1.2m/min)
Strength (C-Ring Failure Stress)
Operating Temperature
Thermal Shock Resistance
Light Transmittance
Surface Finish / Smoothness
Perpendicularity Deviation
Technical Specifications
Outer Diameter: 60+1.5mm
Inner Diameter: 40+1.55mm
Length: 1500+5mm
Flange Diameter: 80+1mm
Flange Thickness: 20+1mm
Aluminum Silicate Fiber
Binder
Vanadium-Titanium Catalyst
0.2m²
70%-85%
≥ 1.2kg
≤ 550Pa
≥ 0.5MPa
250-400°C
Withstands Thermal Gradients of 300°C/h Without Damage
Densely Opaque / Impervious to Light
Filter Tube Inner/Outer Walls & Hemispherical End Exhibit High Surface Flatness, Superior Smoothness, and Absence of Pits
Max: 10mm
